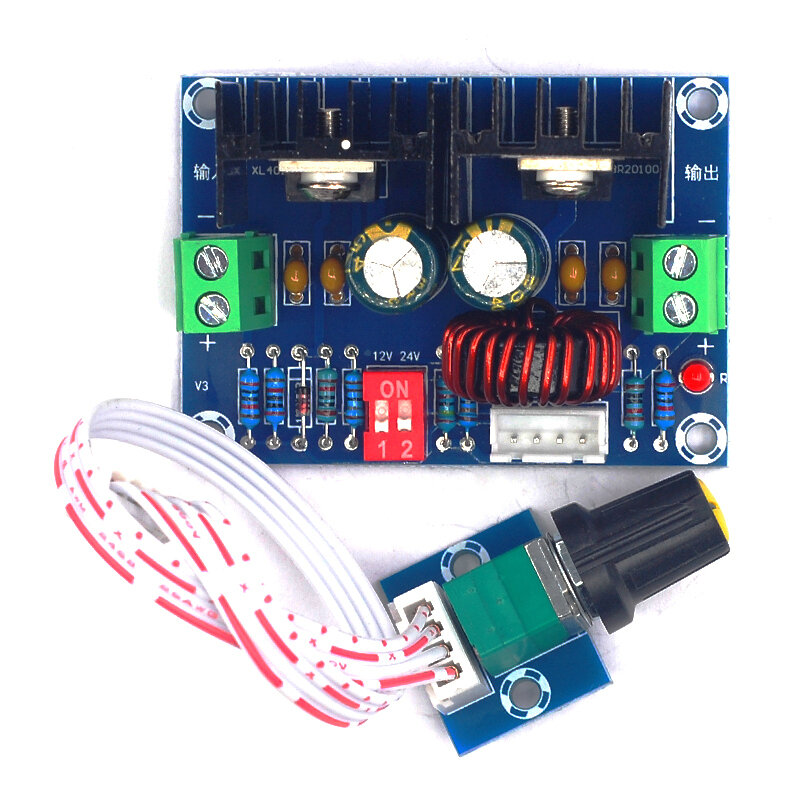

XH-M405 Step-down Regulated Power Supply Module DC-DC PWM Adjustable Board 8A High-power 200W XL4016 Chip

Description

Specifications:
Product Name: DC Regulator
Product Model: XH-M405
Regulation Mode: PWM modulation
Input Voltage: DC 4-40V
Output Range: DC 1.25-36V
Maximum Current: 8A
Maximum Power: 200W
Conversion Efficiency: 94%
Size: 61*43*27mm
Knob Size: 13.5mm

Features:
1. This XH-M405 DC regulator uses potent XL4016 chip to ensure high performance.
2. With the maximum output of 200W and adjustable DC1.25-36V, it suits various purposes.
3. The device works on PWM modulation for efficient power regulation.
4. It comes with a built-in heat sink to maintain optimum operating temperature.
5. Despite its high-power capacity, it maintains an impressive conversion efficiency of 94%, ensuring minimal energy wastage.

Package Includes:
1 x XH-M405 Step-down Regulated Power Supply Module
1 x Adjustment knob (13.5mm)

Please note, suggested power supply current should not exceed 5A for extended usage. If the usage exceeds 5A, you will need to use a fan for cooling.
