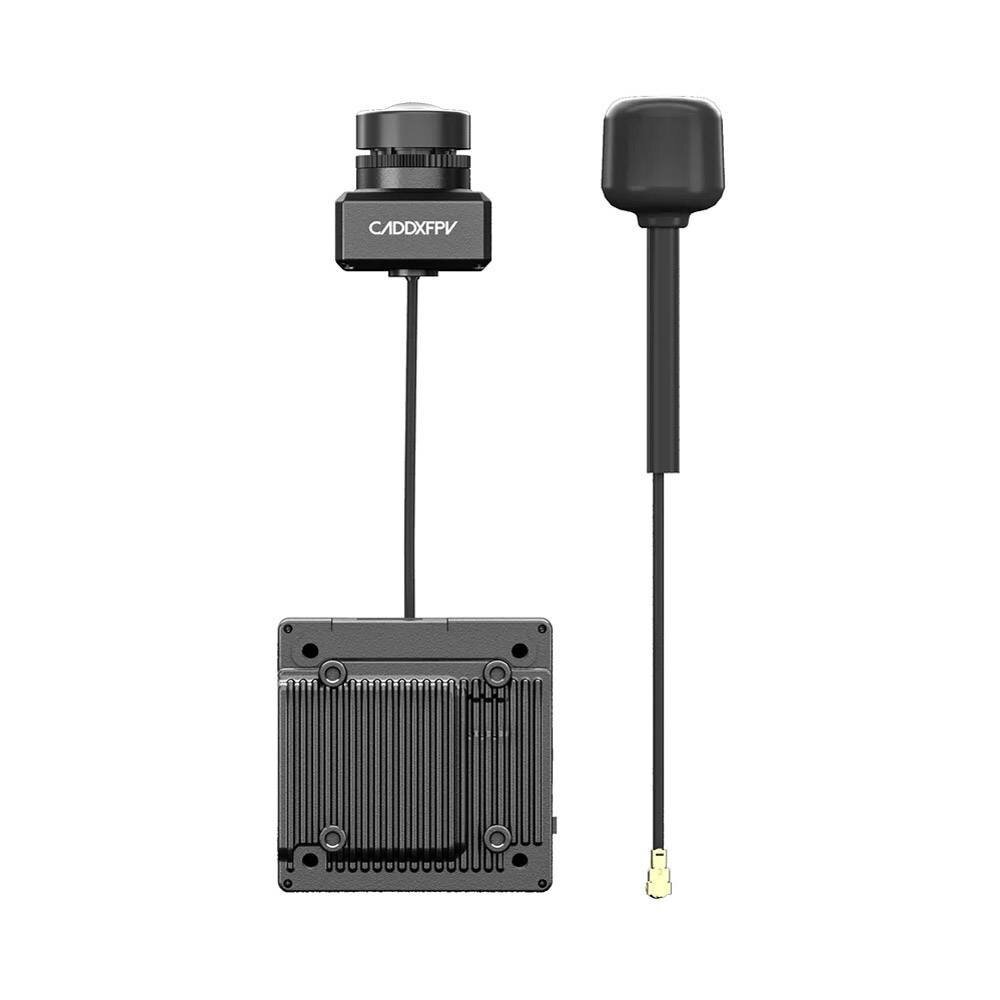

Walksnail Avatar HD Kit V2 5.8Ghz Digital System FPV Transmitter 32GB 22ms Low Latency 1080P HD 160 Day Vision Camera With Gyroflow for RC Drone
155,99 $
Smartixshop.com – Try Walksnail Avatar HD Kit V2 5.8Ghz Digital System FPV Transmitter 32GB 22ms Low Latency 1080P HD 160 Day Vision Camera With Gyroflow for RC Drone with free, secure and fast shipping all around the world!
2 in stock
Description
Feature:
-Optimized antenna base design and frequency button position for greater convenience
-The only native 4:3 high-definition sensor in the FPV industry
-Updated the design of the PCB board and outer shell
-The spare pad provides two power connection modes
-2K pixel, 120fps, 4:3 native sensor
-20*20mm mounting holes
-160° wide-angle FOV
-F/2.0 Large Aperture
-32g built-in storage
-Supports Gyroflow
-1080P 120fps HD FPV
-Lightweight design
-GPS anti-jamming
-22ms low latency
-Ranging Mode
-4KM range
-6V-25.2V
Specification:
Camera
| Model | Avatar V2 camera |
| Image Sensor | 1/3.2-Inch 4Mp 4:3sensor |
| Resolution | 1080P/60fps; 720P/100fps; 720P/60fps;1080P/120fps compatibility; 1080P/100fps compatibility; |
| Min.Illumination | 0.001Lux |
| Dimensions | 19*19*22mm |
| Coaxial Cable | 140mm |
| Shutter | Rolling shutter |
| Ratio | 4:3 native /16:9 |
| Lens | 2.1mm |
| FOV | 160° |
| Aperture | F2.0 |
| Weight | 7.2g |
| Coaxial Cable | 140mm |
| Gyroflow | supported |
VTX
| Model | Avatar V2 module |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm |
| 1/O Interface | JST1.0*4(Power in)JST0.8*6(USB) |
| Mounting Holes | 25.5*25.5mm; 20*20mm |
| Dimensions | 33.5*33.5*10.5mm |
| Storage | 32GB |
| Recording | 1080p/720p |
| Weight | 17.6g |
| Operating Temperature | -20-40℃ |
| Channels | 8 |
| Wide Power Input | 6V-25.2V |
| Supported FC System | Betaflight; Inav; Fettec; ArduPilot; |
| OSD | Canvas mode |
| Latency | Average delay 22ms |
| Antenna | 1(IPEX) |
Avatar V2 antenna
| Polarization | LHCP |
| Bandwidth | 5600MHz-6000MHz |
| Gain | 1.9dBi |
| VSWR | ≤1.5 |
| Input Impedance | 50Ω |
| Interface | IPEX-1 |
| Size | R15 X 45mm （without cable） |
| Weight | 2g |
Recommend Part: (Not Included)
QY3D All-in-one Component Camera Cover
Package Included;
1x Walksnail Avatar HD VTX V2 – 32GB w/ Gyro
1x Walksnail Avatar HD Camera V2
1x Walksnail Avatar Antenna V2
1x USB transfer extension cable
4x M2*5*0.5mm gasket
1x 4 Pin silicone cable
4x M2*14mm screws
8x M2*4mm screws
4x M2*5mm screws
4x M2*6mm screws
