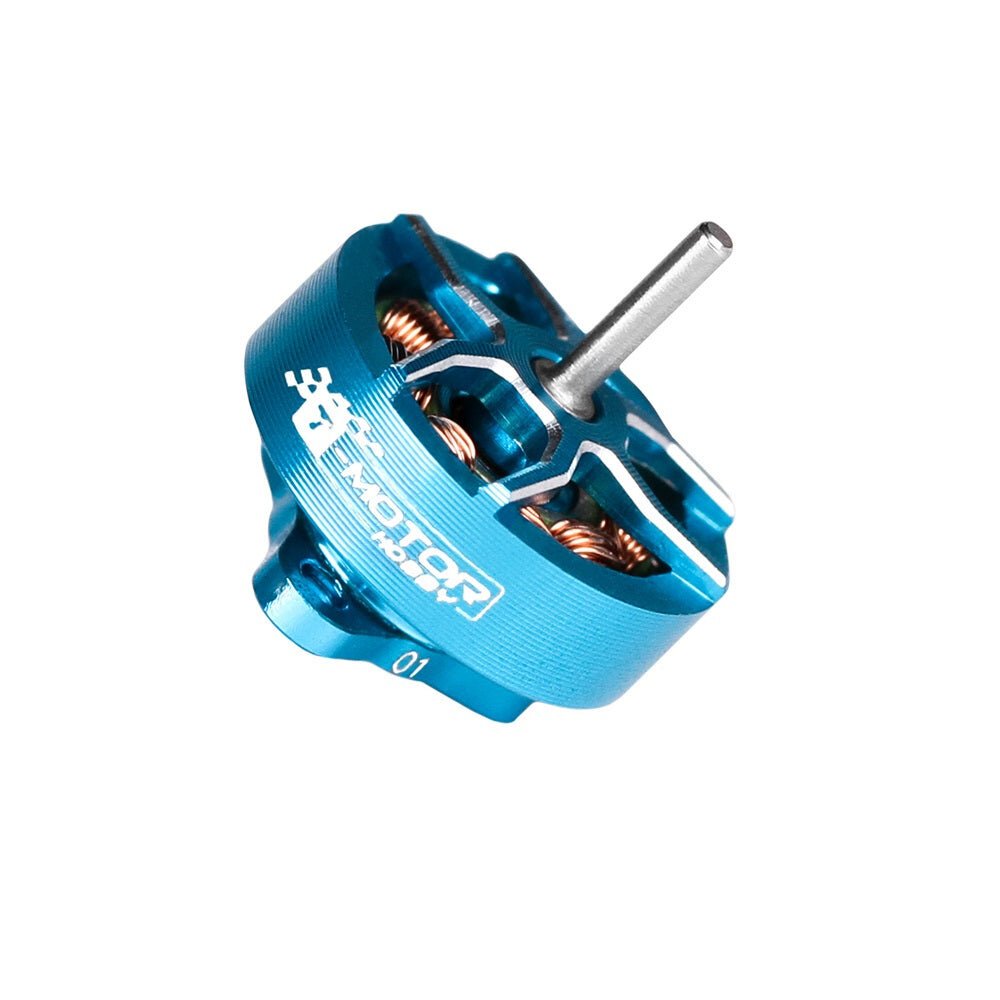

T-MOTOR M0802 0802 22000KV 25000KV 1S Brushless Motor 1mm Shaft for 65mm-75mm Micro Whoop RC Drone FPV Racing Quantity 1 PC KV 22000KV
15,90 $
Smartixshop.com – Try T-MOTOR M0802 0802 22000KV 25000KV 1S Brushless Motor 1mm Shaft for 65mm-75mm Micro Whoop RC Drone FPV Racing Quantity 1 PC KV 22000KV with free, secure and fast shipping all around the world!
3 in stock
Description
Specification:
Brand: T-Motor
Model: M0802
Item Name: 0802 22000KV 25000KV 1S Brushless Motor
KV: 22000KV / 25000KV ( Optional)
Configuration: 9N12P
Weight: 1.91g ( inclu. cable)
| 22000KV | 25000KV | |
| Shaft Diameter | 1mm | IN: 1.5mm, Out: 1mm |
| No. of Cells(Lipo) | 4.2V | 1S |
| Idle Current (4V) | 0.49A | 0.56A |
| Max Power (10s) | 18.1W | 22.3W |
| Peak Current (10s) | 4.4A | 5.39A |
| Lead | JST-1.25 Line 33.5mm Length | JST-1.25 Line 40mm Length |
25000KV Version diagram picture and Test Table
Package Included:
1x T-Motor M0802 Motor
1x bag of Screws
