Machifit 2/3 Axis Grating CNC Milling Digital Readout Display / 50-1000mm Electronic Linear Scale Lathe Tool Size1 JCS900-2AE

Description

Description:

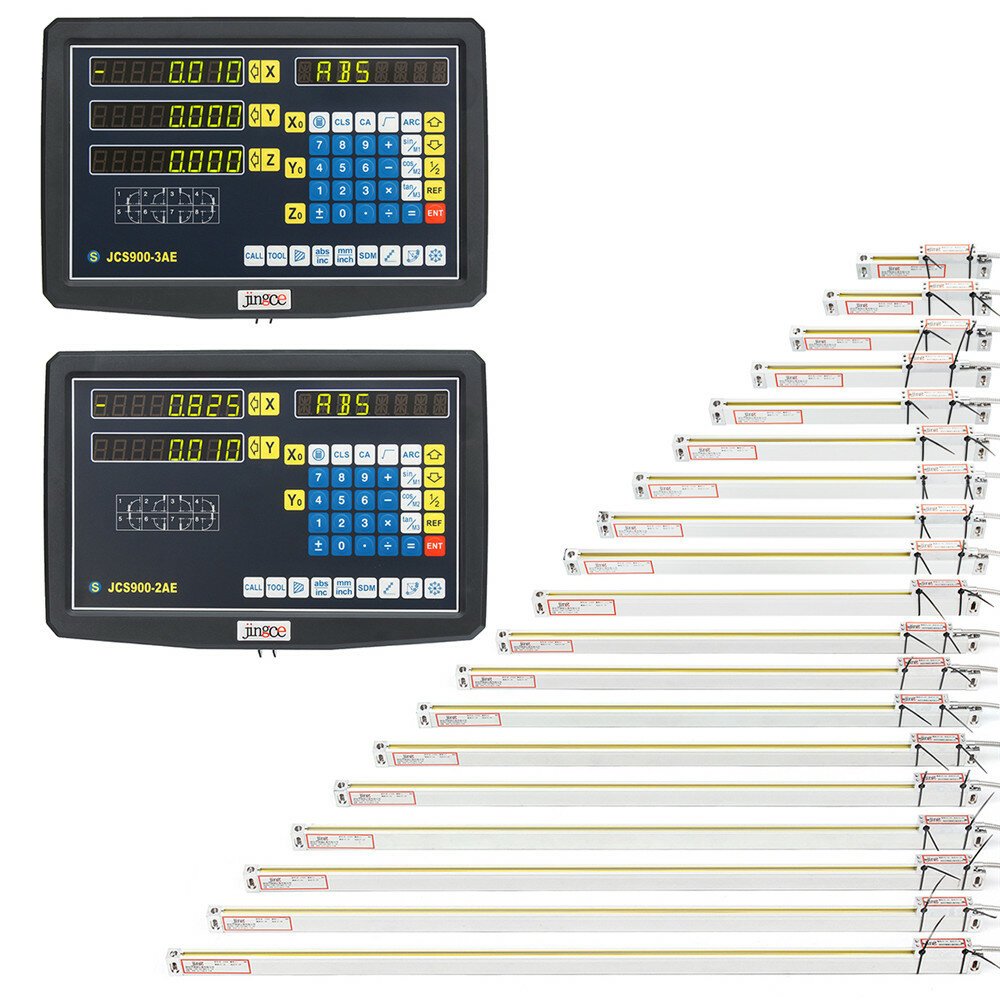

2/3 Axis Grating CNC Milling Digital Readout Display / 50-1000mm Electronic Linear Scale Lathe ToolNote: The item just includes 1pcs item which you select.(JCS900-2AE/JCS900-3AE Readout/50-1000mm Linear Scale)
Specification:
-Axis Digital Readout(2 Axis/3 Axis)
1.Measuring travel: 0-3020mm2.Accuracy class: ± 1um3.Measurement standards: engraved glass grating4.Operating voltage: 5V ± 5% DC5.Working speed: ≤1m / S (1um)6.Acceleration: ≤ 60m / s²7.Reference Operating Humidity: ≤ 90RH8.Grating pitch: 20um (0.020mm)9.Measurement procedure: Incremental10.Signal mode: TTL11.Circuit characteristics: NPN12.Grating measurement system: transmission infrared optical measurement system, infrared wavelength 940nm13.Scanning frequency: ≤28kHz14.Anti-vibration: 50Hz-2KHz, ≤ 180m / s ²15.Impact: 16ms, ≤ 600m / s ²16.Displacement frictional resistance: ≤ 5N17.Protection class: IP53 / IP6418.Signal electrical connection: independent adapter cable (2.5M / 3M / 4M / 5M, ≤ 100M, can be connected to install the block)

Note: The above parameters are measured in the ideal environment. There may be some differences in practical application.

-TTL Linear Scale(50-1000mm)
1.Physical length is differnt from the travel length 50/100,150,200,250,300,350,400,450,500, 550,600,650,700,750,800,850,900,950,1000mm 5um.2.High Precision linear scale3.Resolution: 5um (0.005mm) 0.0002”4.Signal: TTL square5.Grating pitch: 0.02mm (50LP/min)6.Accuracy: ±0.005 mm or 0.0002′ (at 20 deg C)7.Reference marks at interval of 50mm8.Response Speed: 60m/min or 40ins/sec

Note: Buyers may choose any scale measuring length under 1000mm at this price.In fact,The scale can be made from 0-3000mm.Scale length above refers to the real travel of the linear scale. Actual physical length is 141mm longer than travel. One inch equuals to 25.4mm.
Features:
-The sliding part adopts the five-bearing system which has been proved to be the most reliable. The main grating adopts 90-degree assembly, which is more accurate and accurate. -The repeatability of the measurement is more stable.-The signal line adopts multi-layer isolation steel and metal soft shell protection, waterproof and anti-interference fine.-Ruler body with aluminum die-casting, hard chrome plating, corrosion-resistant.-Dust bar with special plastic, corrosion resistance, scratch resistance, friction resistance.-Parts individual, installation, maintenance, easy maintenance, waterproof, dust-proof good, long service life.-The sensor uses a glass precision metrology grating as the measurement reference.-Multi-function, easy to operate, so that the necessary processing of mechanical products.

Manual ID: 1340326

Package Included:

-Axis digital readout

-TTL linear scale

Note: The item just includes 1pcs item which you select.
(JCS900-2AE/JCS900-3AE Readout/50-1000mm Linear Scale)
