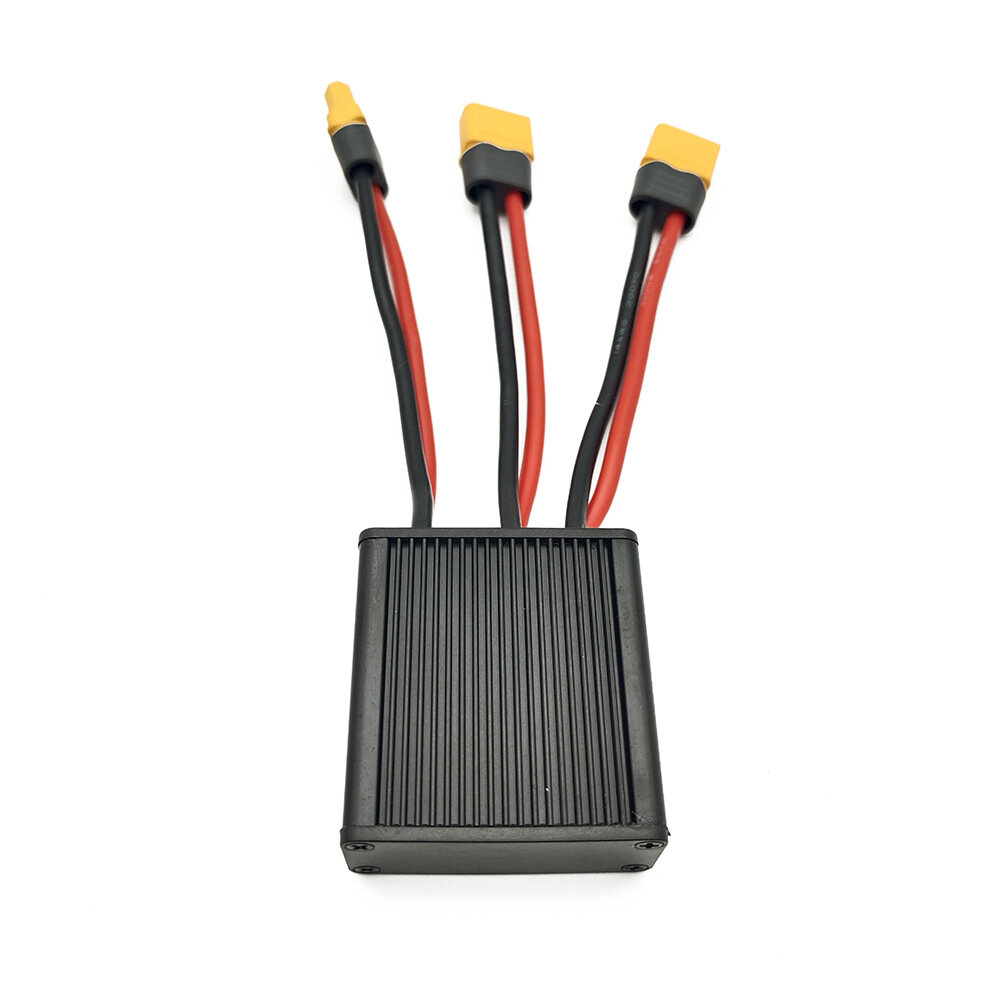

EBKE 36V 20A 500W Electric Bicycle Dual Battery Management Module Switcher Double Battery Discharge Converter
47,99 $
Smartixshop.com – Try EBKE 36V 20A 500W Electric Bicycle Dual Battery Management Module Switcher Double Battery Discharge Converter with free, secure and fast shipping all around the world!
1 in stock
Description
Specifications:
| Brand | EBKE |
| Product Name | Electric Bicycle Dual Battery Discharge Converter |
| Material | Aluminum Alloy |
| Type | 36V |
| Voltage Range | 20V-60V (MAX 72V) |
| Recommended Maximum Power | 20A 500W |
| Working temperature | Less than 65℃ |
| Colour | Black |
| Size | 5.1×4.5×1.8cm |
| Weight | 105g |
Connection Definition:
OUT: Connect with Controller: UART Interface (Default)
IN-A: Connect with Battery Pack A
IN-B: Connect with Battery Pack B
Notice:
What is on-off switch discharge?
Switch discharge means that among the two sets of batteries, the system will use the battery with the highest voltage first until the battery is exhausted, and then automatically switch to the second batteries to continue working. The current will not increase in this state.
Package Includes:
1 x 36V Dual Battery Discharge Converter
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
